• Description
     58101-1DA00
     HR1145

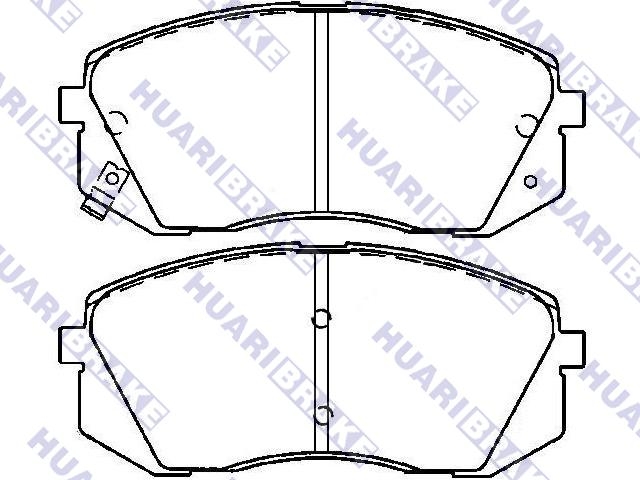

     Brake Pad Set
     SET

    Front Axle
    Brake System : SUM
    Width : 137.8 mm
    Height : 61 mm
    Thickness : 16.6 mm

Brake Pad Set:58101-1DA00
Model Engine Chassis Type CYL year
HYUNDAI (BEIJING) ix35  4/10 - /
HYUNDAI ix35 (LM)  1/10 - /
KIA (DYK) SPORTAGE-R Closed Off-Road Vehicle  0/10 - /
KIA CARENS II (FJ)  1/05 - /
KIA CARENS III MPV (UN)  5/07 - /
KIA SPORTAGE (SL)  2/10 - /

Application

HYUNDAI Tucson AWD 2010-2014
HYUNDAI Tucson FWD 2013-2014
KIA Cadenza 2014
KIA Cadenza Limited 2014
KIA Rondo 2007-2009
KIA Sportage AWD 2011-2014
KIA Sportage FWD 2012-2014


  • Recommends every 5,000 km check Brake System
    ensure the normal operation of the braking system
  • Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
  • Rear brakes is recommended to replace within 5-7 km
  • Replace the Disc brake when follow situation happen:
  • 1.Sensor alarm;
  • 2.Friction materials thickness less than 3mm;
  • 3.Friction materials becomes contaminated with brake fluid;
  • 4.Uneven wear within a set;
  • Replace the brake rote when follow situation happen:
  • 1.Vibrate when braking;
  • 2.Car vehicle performance more than 60000Km and braking unstable;
  • 3.Disc brake thickness wear more than 2mm;
