• Description
     1K0 698 151 B
     HR1247- 3

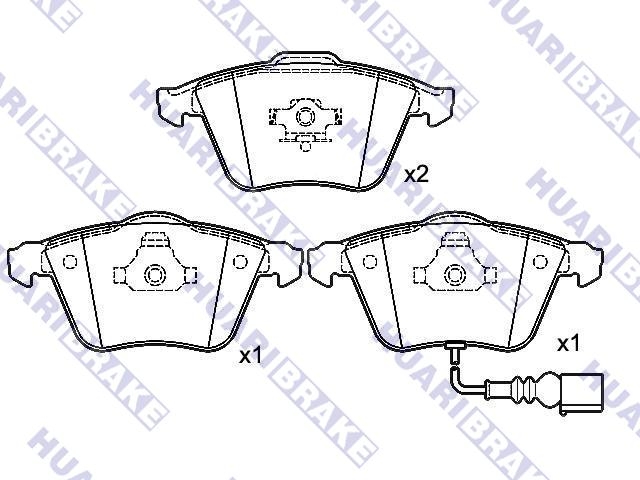

     Brake Pad Set
     SET

    Front Axle
    Brake System : ATE
    Width : 155.1 mm
    Width 1 : 156.3 mm
    Height : 72.9 mm
    Thickness : 20.3 mm

Brake Pad Set:1K0 698 151 B
Model Engine Chassis Type CYL year
AUDI A3 (8P1)  7/03 - 5/09
AUDI (FAW) A6L Saloon (4F2, C6)  3/05 - 2/12
VW (FAW) MAGOTAN (B6)  4/08 - 7/11

Application

AUDI A6 2002-2004
AUDI A6 Quattro 2005-2006
AUDI A6 Quattro 320mm Rotors 2002-2004
AUDI Allroad Quattro 2003-2005
AUDI S4 2004-2009
AUDI S6 2004
VOLKSWAGEN CC V6 2012
VOLKSWAGEN CC VR6 4Motion 2009-2011
VOLKSWAGEN Passat 3.6 L 2006-2008
VOLKSWAGEN Passat CC 2010
VOLKSWAGEN R32 2008


  • Recommends every 5,000 km check Brake System
    ensure the normal operation of the braking system
  • Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
  • Rear brakes is recommended to replace within 5-7 km
  • Replace the Disc brake when follow situation happen:
  • 1.Sensor alarm;
  • 2.Friction materials thickness less than 3mm;
  • 3.Friction materials becomes contaminated with brake fluid;
  • 4.Uneven wear within a set;
  • Replace the brake rote when follow situation happen:
  • 1.Vibrate when braking;
  • 2.Car vehicle performance more than 60000Km and braking unstable;
  • 3.Disc brake thickness wear more than 2mm;
