• Description
     1 177 227

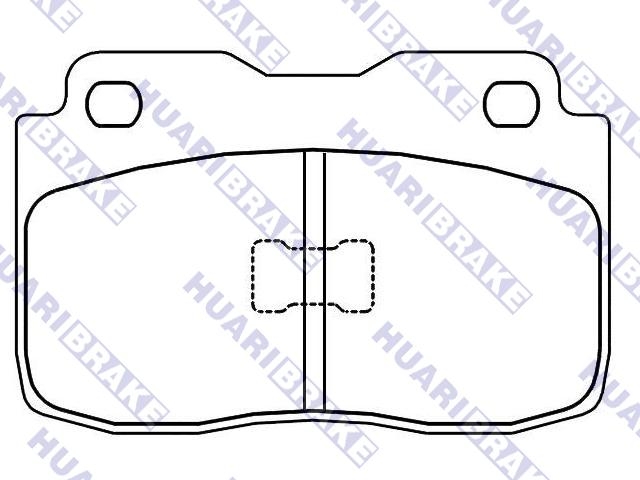

     Brake Pad Set
     SET

    Front Axle
    Brake System : ATE
    Width : 89.71 mm
    Height : 57.5 mm
    Thickness : 16 mm

Brake Pad Set:1 177 227
Model Engine Chassis Type CYL year
FIAT 127 (127_)  4/81 - 2/86
FIAT 147  7/80 - 7/83
FIAT FIORINO (127)  0/77 - 0/86
FIAT FIORINO (147)  2/87 - 2/90
FIAT FIORINO Pick up (147_)  5/84 - 2/88
FIAT UNO (146A/E)  4/84 - 0/95


  • Recommends every 5,000 km check Brake System
    ensure the normal operation of the braking system
  • Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
  • Rear brakes is recommended to replace within 5-7 km
  • Replace the Disc brake when follow situation happen:
  • 1.Sensor alarm;
  • 2.Friction materials thickness less than 3mm;
  • 3.Friction materials becomes contaminated with brake fluid;
  • 4.Uneven wear within a set;
  • Replace the brake rote when follow situation happen:
  • 1.Vibrate when braking;
  • 2.Car vehicle performance more than 60000Km and braking unstable;
  • 3.Disc brake thickness wear more than 2mm;
